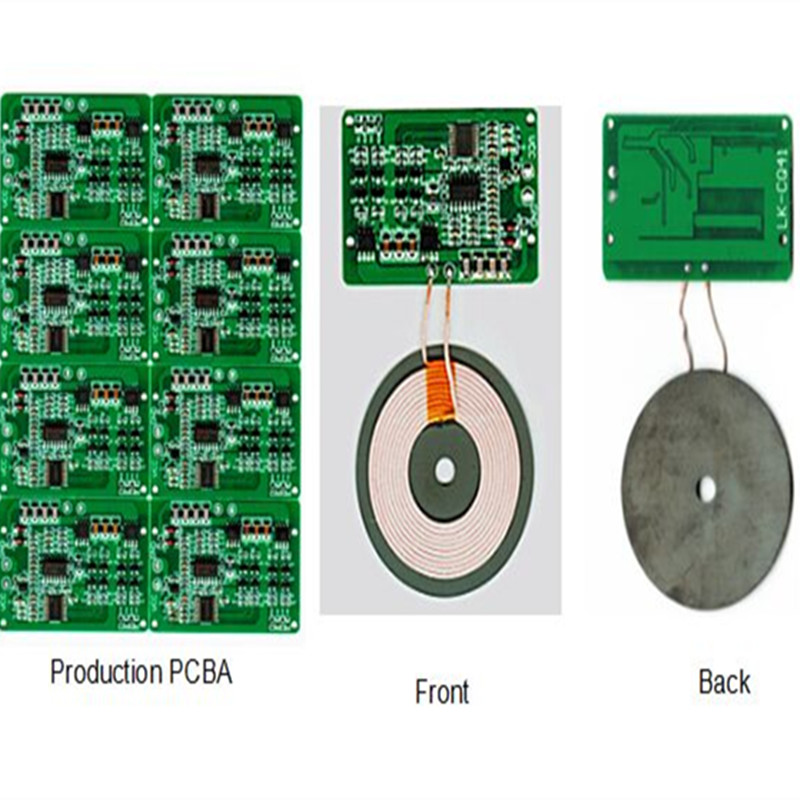

Transmitter module for LED lamp

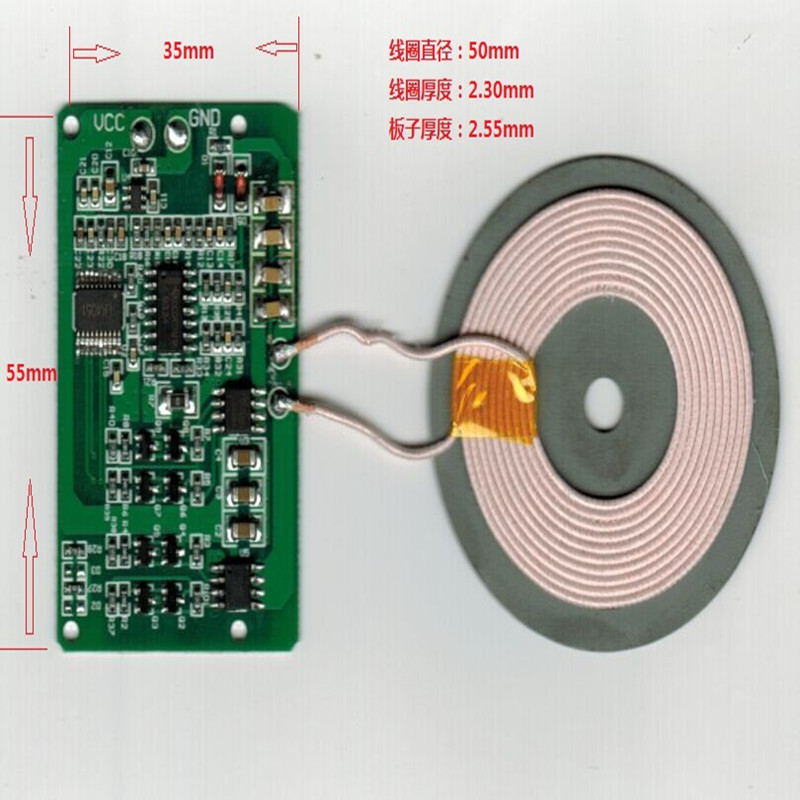

     PCB size ：55*35mm

     Coil size ：50mm

     PCBA Thickness ：2.8mm

     Coil Thickness: 3.4mm，Other：2.2mm

     Coil can be customized。

     Input ：5V 2A

     Input ：5V 1A

     Charging distance ：6mm  （Max10mm）

     Charging efficiency：75%

Assembly guide

1.PCB has four fixed screw holes.

2.PCBA and the coil can be tiled, also can stack. Depending on the product mould or structure.

3 the distance between the coil and the surface of the table is not more than 4mm (not more than 4mm).

 4 surface material can not be metal.

 5 power supply line must be over 2A current, wire diameter can not be too small.
